MAKE/MODEL PART #
R45, R65, SERIES 7 WITH DISTRIBUTOR - HALL EFFECT LR139 SERIES 5 LR107 SERIES 6 LR114 SERIES 7 & R90S LR108
650 UNIT TWIN LR119 ROCKET 3 LR120 UNIT SINGLE LR135
750 BEVEL DRIVE LR106 860 BEVEL DRIVE LR128 SINGLE LR132
350 Twin LR145
V35, V50III, V65 (points models - SEE NOTES) LR137 LE MANS 1, 2 LR125 LE MANS 3, 4, 5 LR141 Motoplat in distributor LR144 SPADA LR136 T3 LR124
COMMANDO LR100
500 DAYTONA LR112 650 PRE-1971 LR121 650/750 1971-78 LR101 TRIDENT (T150) LR113 TRIDENT (T160) LR102
RITA Replacement for OEM Amplifier LR138 (SEE NOTES RE KAWASAKI FITMENT)
XS650 LR130
High-output 180 watt 3-phase Alternator Kit LA131
Triangular Mounting-Flange Type LR134 For Singles, Parallel Twins & Vincent V-twin

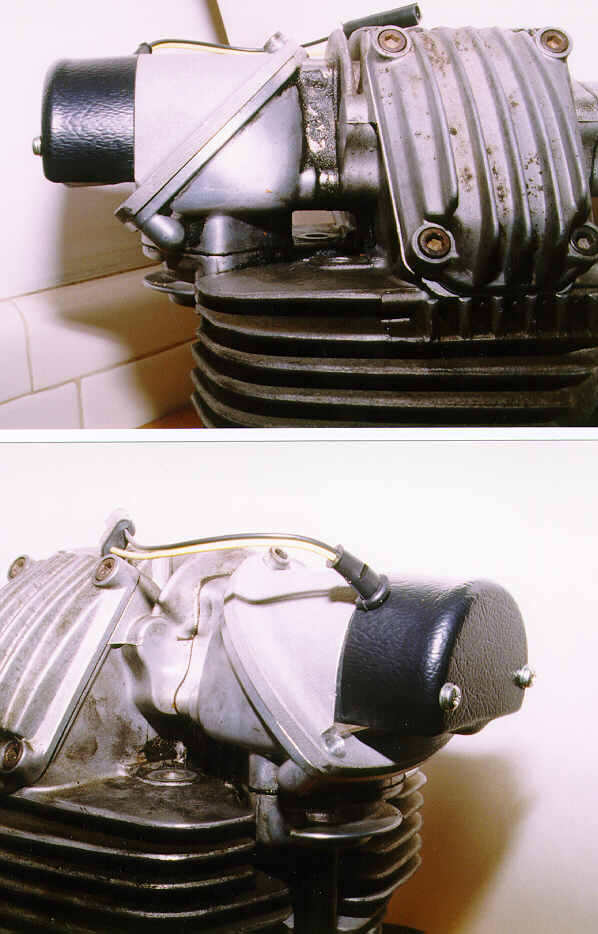

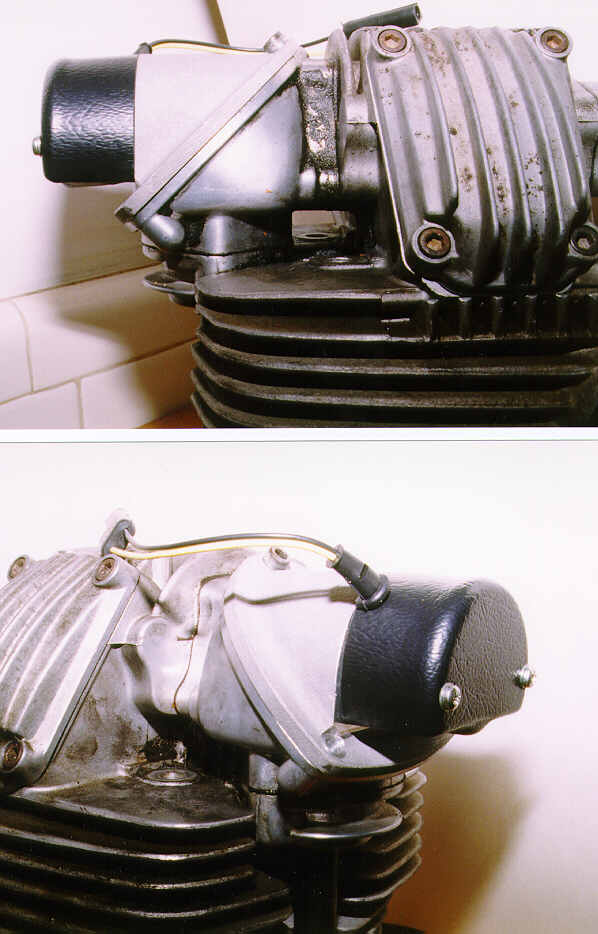

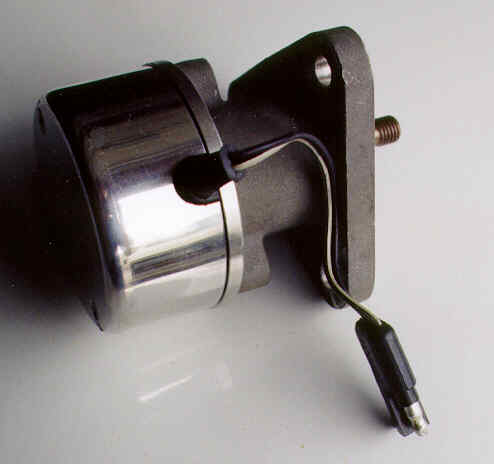

A photo of the LR134 magneto replacement 14K jpg file
As of 16 April 1999 the single and three-phase permanent magnet alternator and excited field 3-phase Voltpaks are no longer available. The company that has been manufacturing them for Action Engineering no longer has room in their production capability for the Voltpaks, due largely to supplying a large US manufacturer with their OEM regulator/rectifier units. Action Engineering is out of stock of the above models as is Euro Spares. I'm keeping the Voltpak instructions on the website as a service to those who might find them of use.
I've reproduced here a typical instruction sheet for the Voltpak. The files are 50-60K in size, and some of the pages didn't have all the text on them, due to previous copying errors, so I've mentioned the missing text next to the appropriate link.
The model KS is the three-phase permanent-magnet rotor alternator unit. It can also be fitted to two-wire single phase alternators by using the two outer yellow wires from the Voltpak for connecting to the alternator. The RX is for excited-field three-phase systems

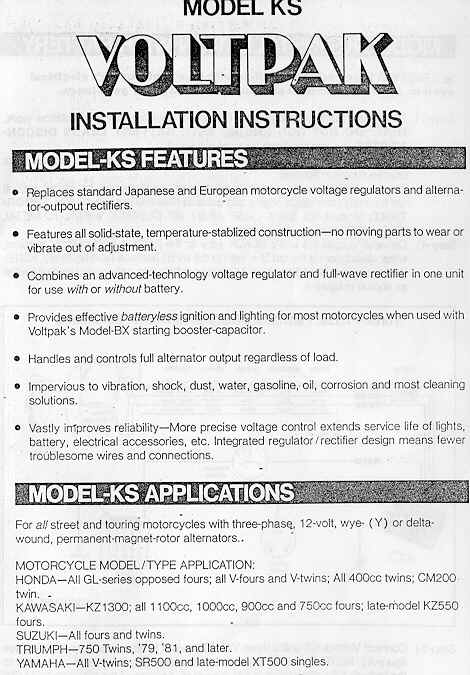

Voltpak Model KS instructions - page 1

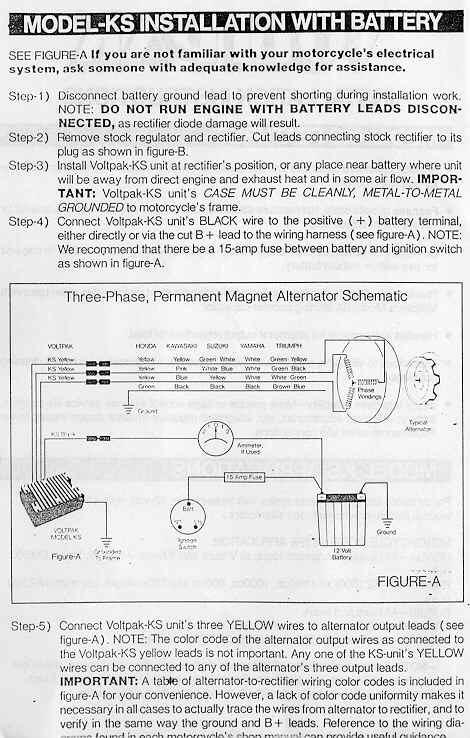

Voltpak Model KS instructions - page 2 The bottom line is: "diagrams found in each motorcycle's shop manual can provide useful guidance".

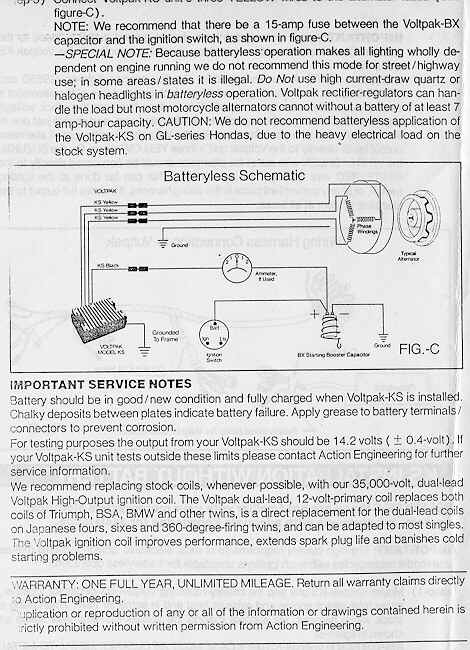

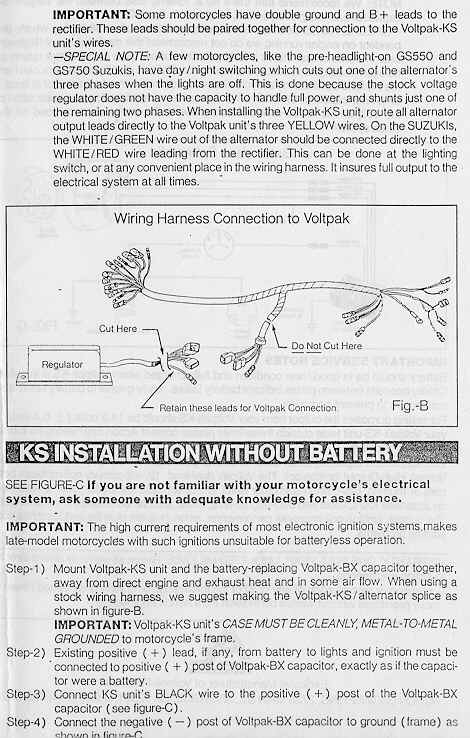

Voltpak Model KS instructions - page 3 The bottom line is: "shown in figure-C".
Voltpak Model KS instructions - page 4 The top line is: "Connect Voltpak-KS unit's three YELLOW wires to the alternator leads (see figure-C)".

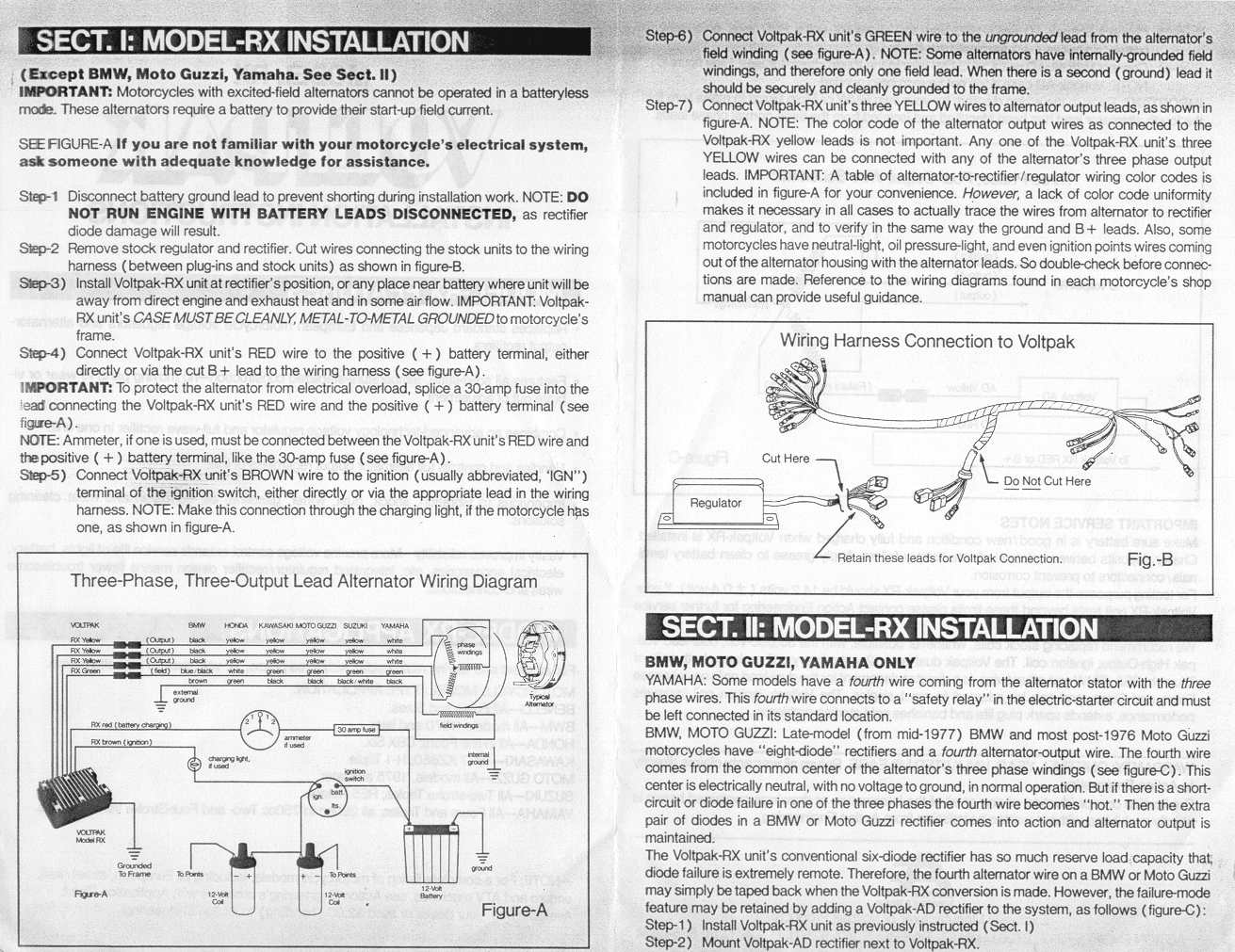

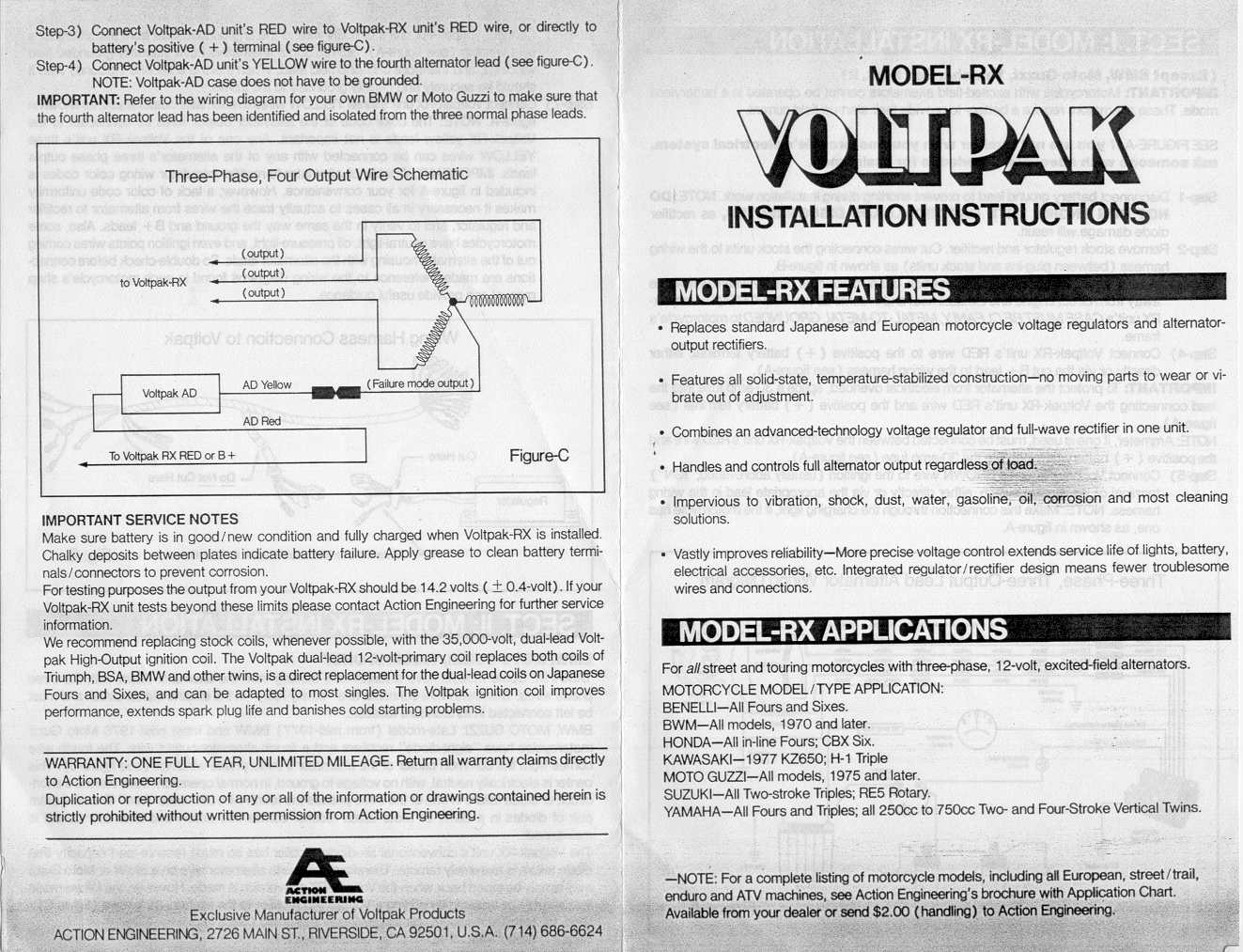

Voltpak Model RX instructions - page 1
Voltpak Model RX instructions - page 2
